15A American/USA Duplex AC wall power TR receptacle outlet with Dual USB ports charger outlet 2.1A/4A

FOB Reference Price:Get Latest Price
  • 500 - 4999 Pieces
    US $4.00
  • >=5000 Pieces
    US $3.90
Customization:
Customized logo (Min. Order: 5000 Pieces)
Customized packaging (Min. Order: 5000 Pieces)

More

Graphic customization (Min. Order: 5000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
BAREP
Model Number:
TR-BAS15-2USB
Type:
Wall Socket
Grounding:
Standard Grounding
Rated Voltage:
125V
Rated Current:
15A
Application:
Residential / General-Purpose
Color:
White or customized
USB output:
5V DC 2.1A
Material:
PC and copper
Current:
15A
Voltage:
125v
Frequency:
60HZ
Certificate:
CUL
UL Number:
E481372
Package:
White Box
Keyword:
USB wall outlet
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pcs per inner box, 60pcs in one carton or as your requirement
Port
Shanghai
Lead Time :
Quantity(Pieces) 1 - 5000 >5000
Est. Time(day) 10 To be negotiated

Product Description

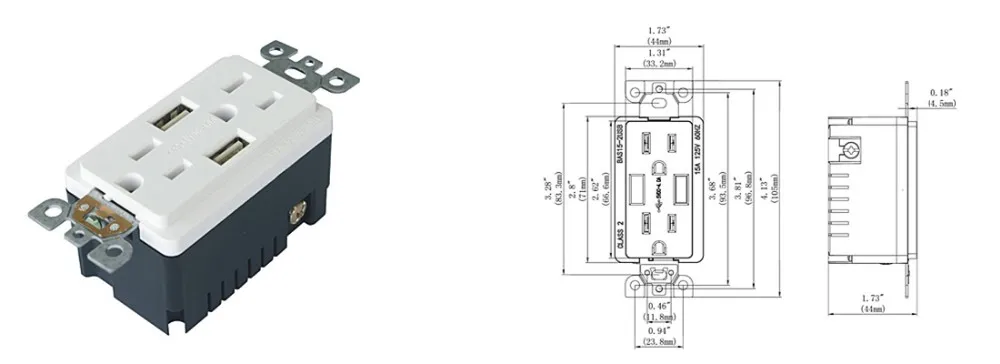

15A American/USA Duplex AC wall  power TR receptacle outlet with Dual USB ports charger outlet 2.1A/4A



Current: 15Amp
Voltage: 125 Volt
Feature: Tamper Resistant
Frequency: 60 Hz
Output: Dual USB total of 4.0Amp 5V DC
Compatibility : USB1.0/2.0/3.0
Color: white/black or customized
Standards and Certifications: UL listed(E481372)
Surge Protection: 6KV/3KA
Working temperature: -20℃~60℃

Specification:

  1.  UL Approval two15A 125VAC outlets with two 5V,4ADC USB port
  2. 4A charging capacity:The total output is 4A,the output of each usb port is automatically identified according to the charging device.
  3. USB Port compatible with standard USB Specification 1.0, 2.0, 3.0,such as iPad,iPhone,iPad Mini,Tablets,GPS,Mobile Phones,Galaxy Tab,Bluetooth Headsets,Digital Cameras.
  4. Automatic Protection Function:If the devices combined power requirements exceed 4A,the power capacity of the USB ports,the charger will automatically shut down to protect your device.pull plug first, and then insert it again to allow the outlet to resume operation.
  5. Easy Installation:Side&back Wire,accepting #14-#10 AWG copper wire,Easy Installation:Side&back Wire,accepting #14 - #10 AWG copper wire
  6. Operation Temperature:-4 to 140℉(-20 to 60℃)
  7. TR(Tamper Resistant):Springloaded receptacle cover plates that close off the receptacle openings, or slots.The receptacle cover plates open to allow the standard plug to make contact with the receptacle contact points. Without this simultaneous pressure, the cover plates remain closed, preventing insertion of foreign objects and protecting your children from painful, traumatic electrical injuries.
  8. All Electrical Outlet with USB, 15A TR Receptacle have been inspected strictly before delivery,Two-year warranty.
1.USB ports with a high-current power of 4Amp total (1,050mA 1.05A per USB port), 5VDC
2.Charge most compatible electrical device directly without an adapter
3.Tamper-Resistant Shutters provide compliance with 2011 NEC Code
4.Back and side wire for easy installation



Advantages:

Pre-sale service
1.Sample can be provide with freight charge to be collect.
2.OEM and ODM are available, any logo can be printed on the product.
3.Good quality, competitive price and short time delivery are provide for you.
After-sales service
1. Any feedback or comments are welcomed.



Company Information

Zhangjiagang City Barep Electrical Technology Co Ltd research and development, production and sales as a whole, specializes in manufacture of high reliability, widely used GFCI-ground fault circuit protector Sockets and switches, panels, junction boxes and other electrical accessories,technical indicators in line with the United States,and Canada, and Mexico electrical specifications.

Barep General Electric and insist on using the best quality materials,high-precision parts manufacturing,product design makes it easy to assemble,meet customer requirements,the electrical properties are in line with standards such as UL943, UL498, UL20, UL514C

Barep General Electric and all products are made in CULUS certification, the company has ISO9001:2008 certification,products are widely used in the living room,kitchen,bathroom and various power tools, generators, are exported to North America, South America and Europe and other regions.

Mission is everything, we will closely follow the pace, walk in the front development, develop more meet NEMA specifications for civil and industrial products,to meet the needs of foreign markets, the customer support and praise.
